The 3M Linear Delineation System is a flexible,
low-maintenance, highly visible solution
to improve roadway safety. Dangerous curves,
narrow two lane roads, construction work
zones, bridge and tunnel contours, and permanent
and temporary barriers - all present unique
challenges for roadway safety. Continuous,
linear delineation can improve safety in
these situations by making it easier to
follow sharp changes in roadway geometry.
LDS provides superior reflectorization even
when approached at extreme angles of up
to 70 degrees and offers unmatched benefits,
value and performance against current systems
of spot delineations. |
|
|
|
|
|
|

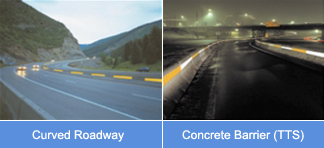

Curve
before LDS application
|
|
Curve
after LDS application
|
|
| |
|
| |
 |
|
Each LDS panel consists of 3M Diamond
Grade Reflective sheeting laminated
onto a thin gauge
Aluminum substrate. The panels are
edge hemmed to protect the sheeting
from delamination while in use and
while cleaning. The unique "crimped
wave" shape makes LDS panels
extremely visible, even in areas with
high entrance angles. The 34-inch
panels are available in
4-or 6-inch widths and are highly
flexible for ease of application to
different surfaces. Intended for linear
reflectorization of concrete barriers
and metal guardrails, the Linear Delineation
System is easy to install and remove
for use in both permanent and temporary
applications. |
| |
|
|
|
|
|
| |
|
|
 |
|
Being authorized converters of 3M
for Traffic Safety Systems products
and services in Pakistan, 3M assumes
full responsibility of all the works
being done by ALDO international.
Talk to us for further details about
LDS. ALDO offers complete supply and
installation services any where in
Pakistan.
For technical literature, specifications,
demonstration, presentation and samples
of LDS panels please contact:
Engr. Mr.Awais Khalid
General Manager (North)
Email: akhalid@aldo.pk,
Cell: +92-300-5003902 |
| |
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
